Equinox; a Custom fit IEM from Campfire Audio.
We’ve been hard at work making a really cool new custom fit earphone: Equinox.
The result is a terrific sounding earphone with a solid body design and something new; a custom fit.
Currently this is a ‘beta’ product available in very limited quantity in select markets.
Designed and Assembled in Portland, Oregon USA. Contact us at Support@CampfireAudio.com if you have questions about this program.

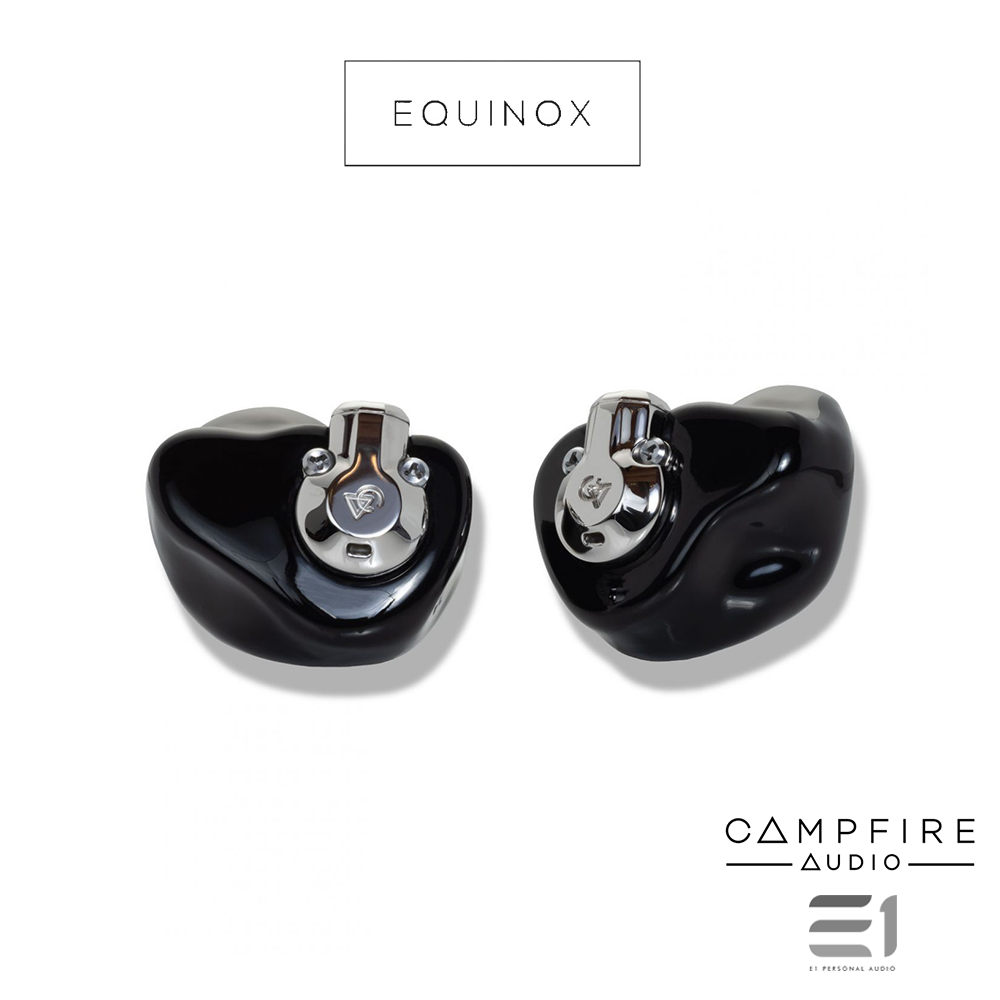

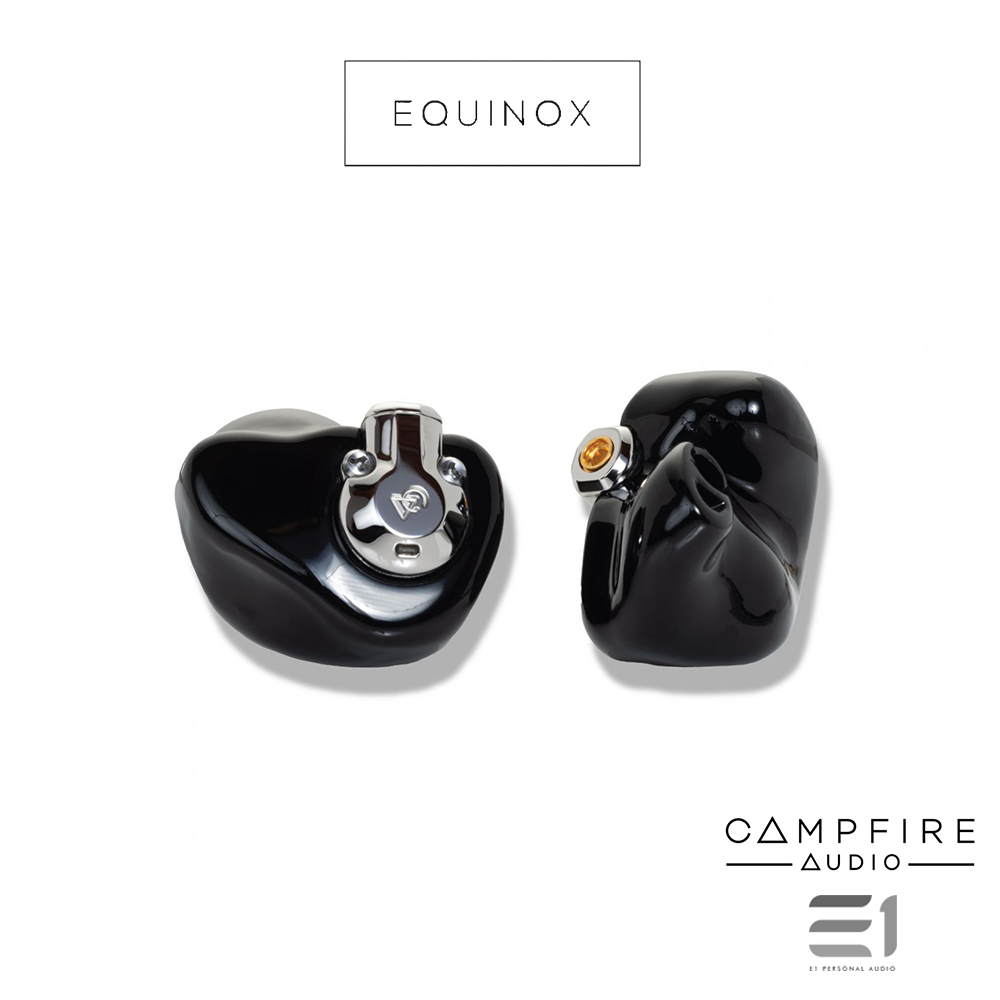

Solid Body Design
Our new custom fit design is a direct print solid body design. We create the exterior design from a scan of the impression and apply our unique shaping formulas.
Then the internal accoustic chambers are incorporated into the 3D model. This gives each earphone the best sound possible with optimized pathways.
Stainless Steel Driver Housing
The distincitve stainless steel housing captures the dyamic driver and provides the heart of Equinox.
This adds a certain roubustness to the earphone’s sonic signature and provides an additional level of protection for the earphone.

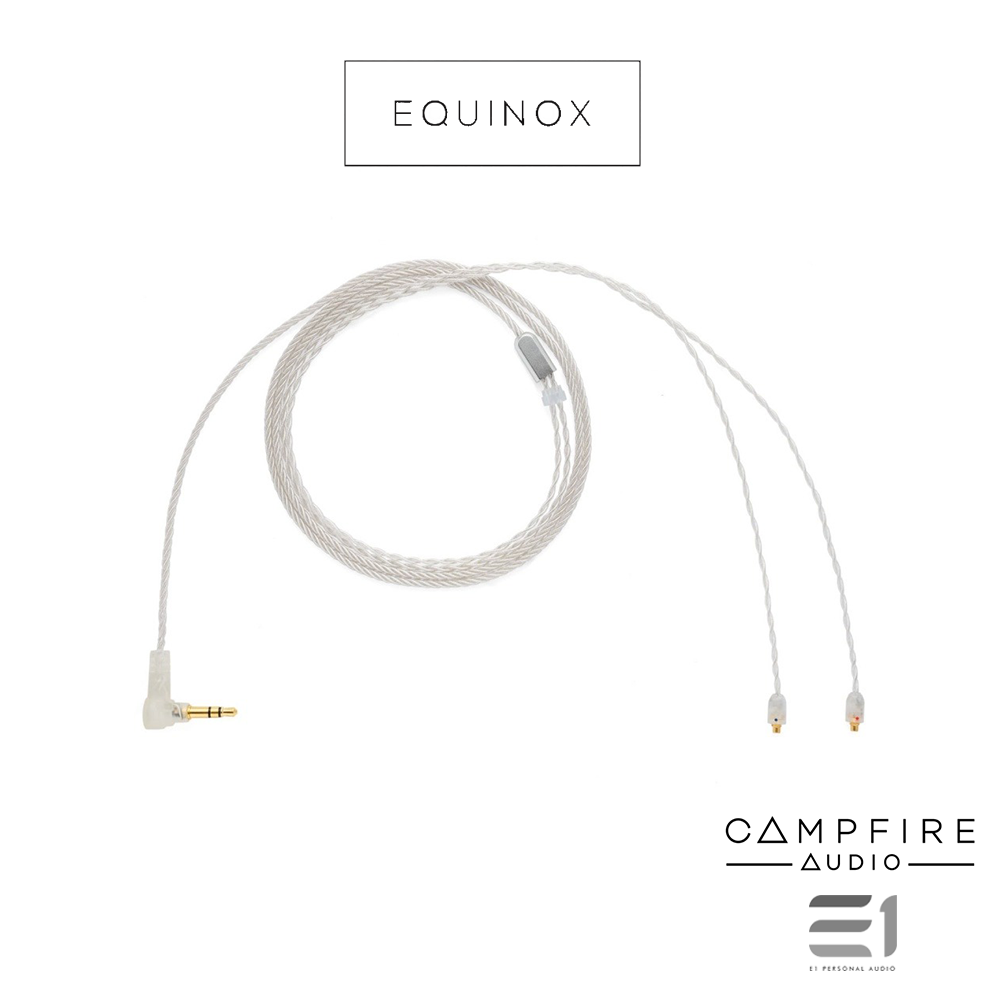

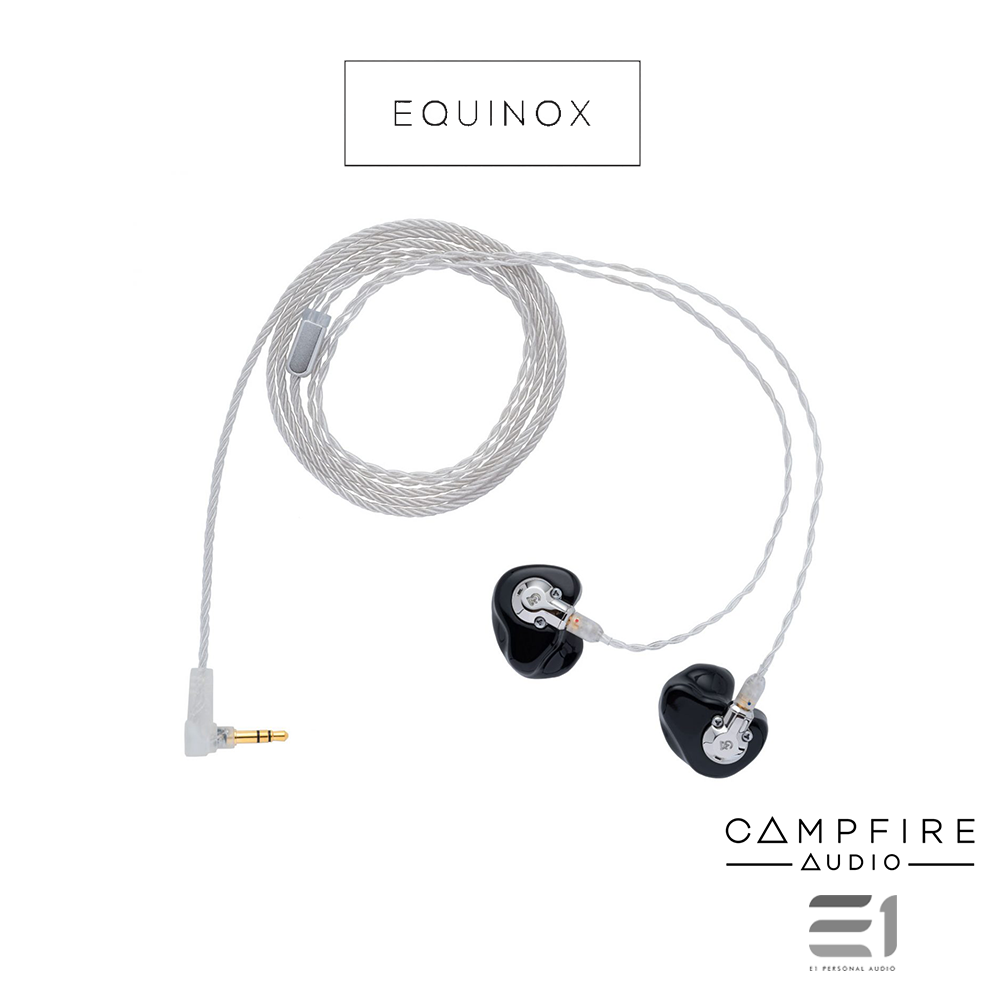

New Pure Silver Cable
We’ve included our new pure silver cable litz cable to get the very best sound possible from the Equinox. The pure silver litz conductors provide additional resolution and refinement to an already exceptional sound. We found the pairing of the 10mm A.D.L.C. dynamic driver with this cable really makes the music shine.
This cable is also wound with a twist that reduces tangling and microphonics improving your daily experience with Equinox.
Solid Body Design
Our new solid body design provides optimized accousitc performance by incorporating the tuning chambers of the earphone directly into the final print.
MMCX designed to last
Our custom Beryllium Copper MMCX eliminates the traditional shortcomings of the connection and harnesses all of its benefits. Beryllium Copper provides a robust mating mechanism; one that is typcially made from soft brass. This selection of a harder material extends the life of component and the earphone.
Close attention to detail is critical to delivering you the superior musical experience from our earphones. Each impression is scanned and modeled. Our shaping parameters are applied to the model and the internal chamber are incorporated into the model.
- Authentic Campfire Audio Earphone Packaging
- USA Made “French Paper Company” Paper
- Printed Locally in Portland, Oregon USA
- Authentic Warranty Number Sticker – Matches Interior Warranty Card
- 5Hz–20 kHz Frequency Response
- 105 dB SPL/mW Sensitivity
- 19 Ohms @ 1kHz Impedance
- Less than 1% Total Harmonic Distortion
- Single Full Range 10mm Dynamic Driver
- Plasma enhanced Chemical Vapor Depostion (C.V.D.) Amorphous Diamond Like Carbon (A.D.L.C.) Diaphragm.
- Beryllium / Copper MMCX Connections
- Stainless Steel Driver Enclosure with Custom Fit Body
