HeadAmp Gilmore Lite Mk2 Class-A Headphone Amplifier
HeadAmp Gilmore Lite Mk2 Class-A Headphone Amplifier
Regular price
RM2,509.00 MYR
Regular price
Sale price
RM2,509.00 MYR
Unit price
/
per
Taxes included.
Couldn't load pickup availability

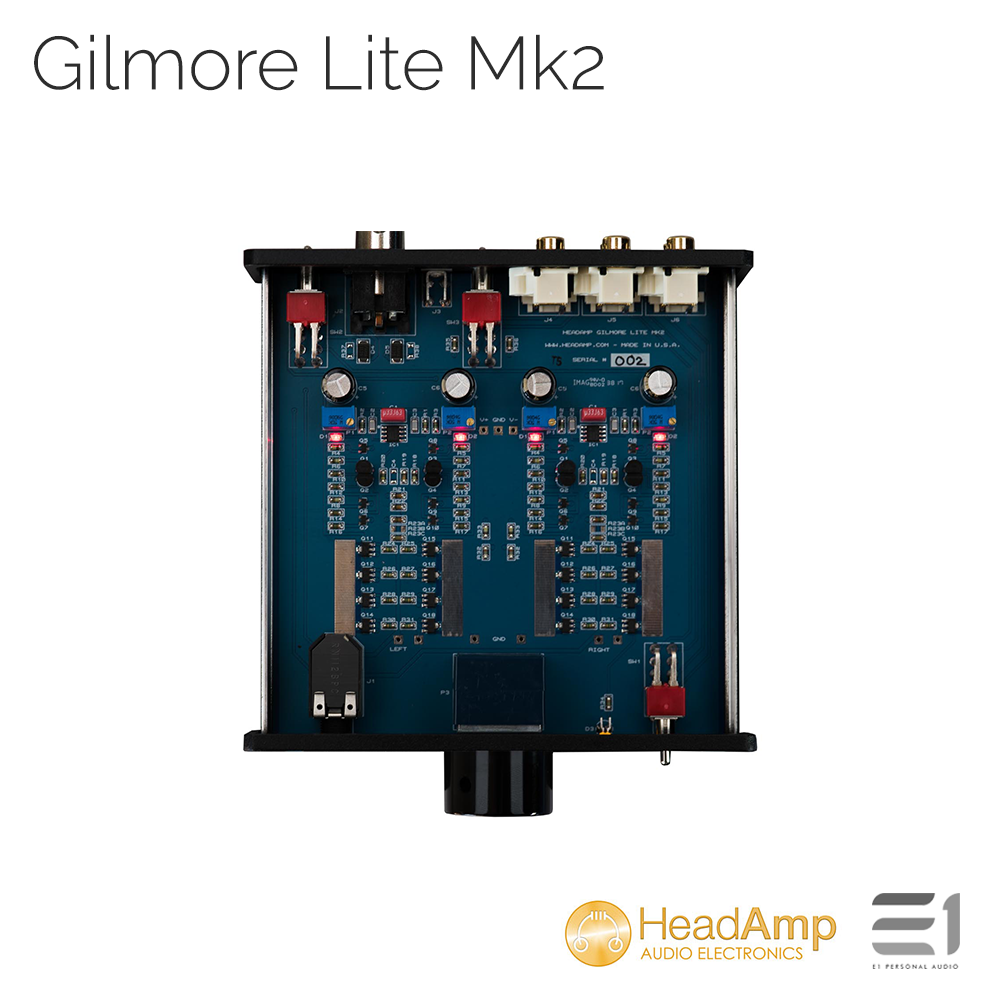

The Gilmore Lite Mk2 uses the same super-low-noise/distortion amplifier circuit as our flagship dynamic amp, the GS-X Mk2, at a very affordable $499 everyday price. It drives drynamic and planar magnetic headphones with up to 1.5W of pure class-A power from its’ fully discrete amplifier section.

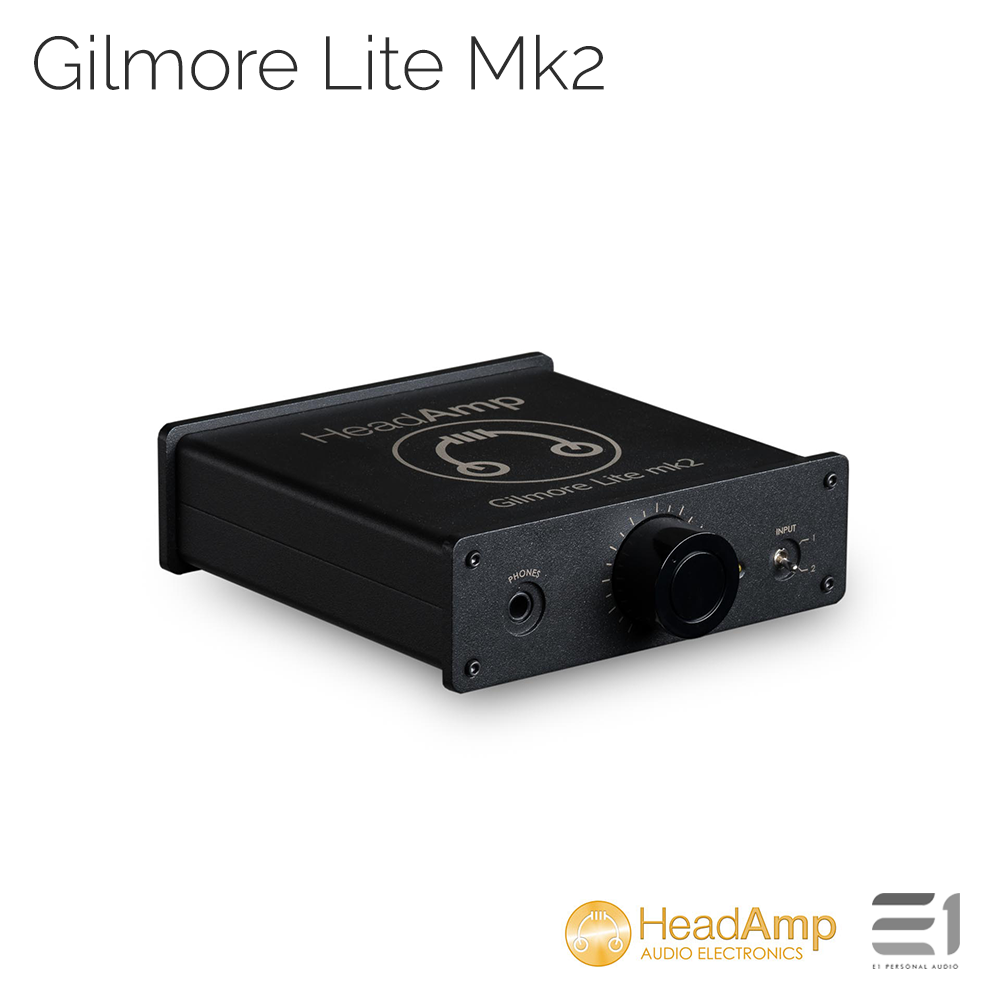

This amp has all the fine attention to detail and special touches that make it a true HeadAmp original. The volume knob outclasses the competition, and the bronzed engraving and amber LED give it a unique aesthetic.
The Gilmore Lite Mk2 has a pre-amp output for controlling speakers, and two switchable RCA inputs.
Electrical
| Type | Low noise JFET input; Pure Class A bipolar transistor output |
| Frequency Response | 10Hz-90KHz +/-0.2dB |
| THD+N | <0.006% |
| Total Drive Power | Max 1.5W |
| Gain | 7.5X (16.5dB) |
| Input Impedance | 50K ohm |
| Output Impedance | <1 ohm |
| Line Voltage | 100V, 115/120V, 230/240V |
| Power Consumption | 10W |
Mechanical
| Volume Control | Alps Blue Potentiometer |
| Inputs | 2 sets RCA jacks |
| Outputs | 1 6.5mm headphone jack, 1 set RCA active-preamplifier jacks |
| Dimensions – Amplifier | 5.75in [146mm] W x 6.75in [171mm] D x 2in [51mm] H |
| Shipping Weight | 4lb [1.8Kg] |
