iBasso DX220 Portable Digital Audio Player

iBasso DX220

The first to support two-way Bluetooth 5.0-inch DX220 is the first to support two-way Bluetooth 5.0 portable player, providing native support for LDAC and aptX

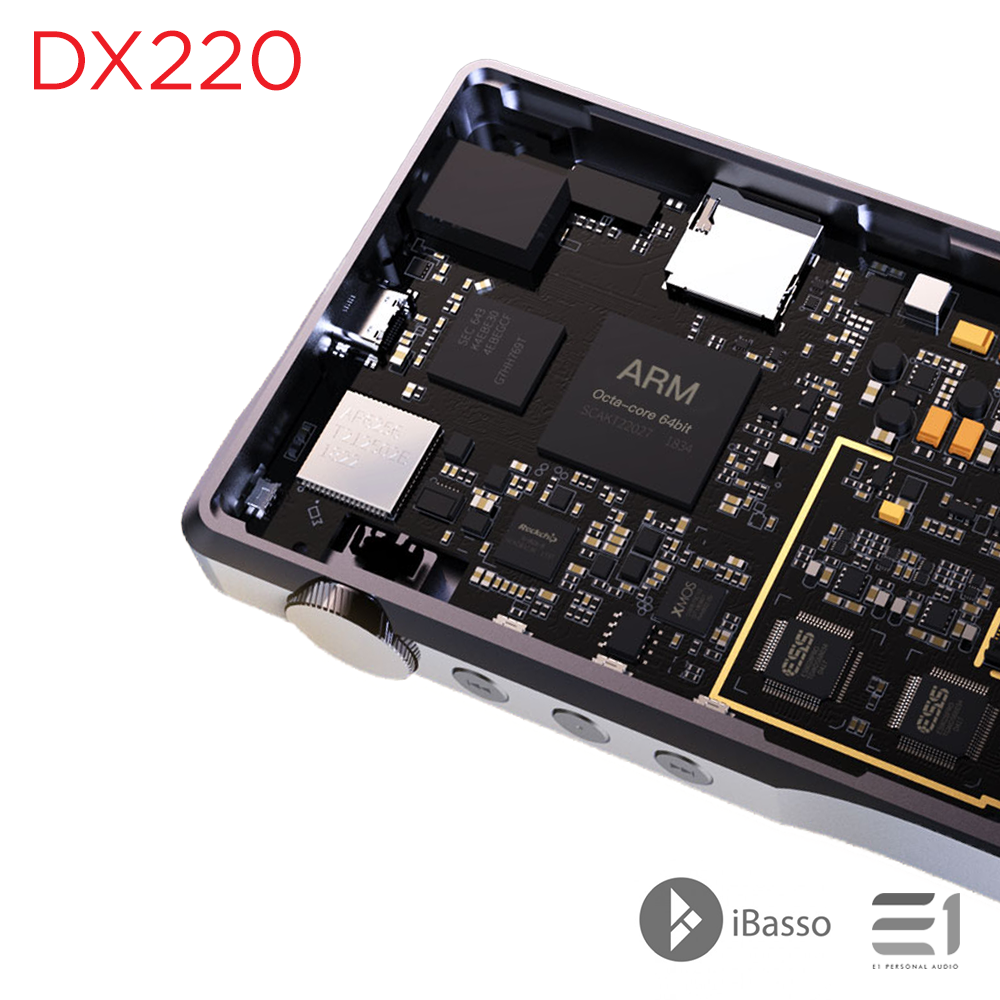

Full metal CNC back cover + antenna reflection cavity, full metal coverage of the fuselage, the antenna is completely literate. Out of the body, completely eliminate the interference.

The powerful professional parameter EQ DX220 adds a more professional parameter EQ in addition to the 10-segment graphical EQ, providing a total of 8 full-type high-precision filters in 6 segments. Each segment of the filter can be individually set to adjust the F value, Q value and gain, with detailed visual adjustment capabilities.

Support for MQA music decoding The MQA format draws on recent research in auditory neuroscience, digital coding and high-quality sound perception. MQA files created using Origami folding technology can provide ultra-high resolution playback at low capacity on a supported device on a supported device. The DX220 supports decoding of MQA in X4 mode, which greatly improves the quality of source files. Provide hardware support for HD streaming such as Tidal. 48kHz 72kHz 24kHz

Specifications

• OS: Android
• DAC: Dual ES9028Pro
• Output Ports: 2.5BAL, 3.5PO, 3.5LO, SPDIF
• Screen: 5.0inch 1080P Full Screen 455 ppi + Gorilla Glass + Nano-hydrophobic
• CPU: Octa Core
• USB-DAC: XMOS
• Bluetooth: V5 Support LDAC, aptX

2.5mm Balanced Output:

• Output Voltage: 6.2Vrms
• Frequency Response: 10HZ-45KHZ+/-0.3dB
• S/N: 125dB
• THD+N: -0.00018% (no load, 3Vrms)
  -0.0002% (32Ω load, 3Vrms)
• Crosstalk: -119dB

3.5mm Single Ended Output:

• Output Voltage: 3.1Vrms
• Frequency Response: 10HZ-45KHZ+/-0.3dB
• S/N: 123dB
• THD+N: -0.00031% (no load, 1.8Vrms)
  -0.00035% (32Ω load, 1.8Vrms)
• Crosstalk: -117dB

Line out:

• Output Voltage: 3.0Vrms
• Frequency response: 10HZ-45KHZ+/-0.3dB
• S/N: 122dB
• THD+N: -0.00035%, -107dB (no load, 1.8Vrms)
• Crosstalk: -116dB
