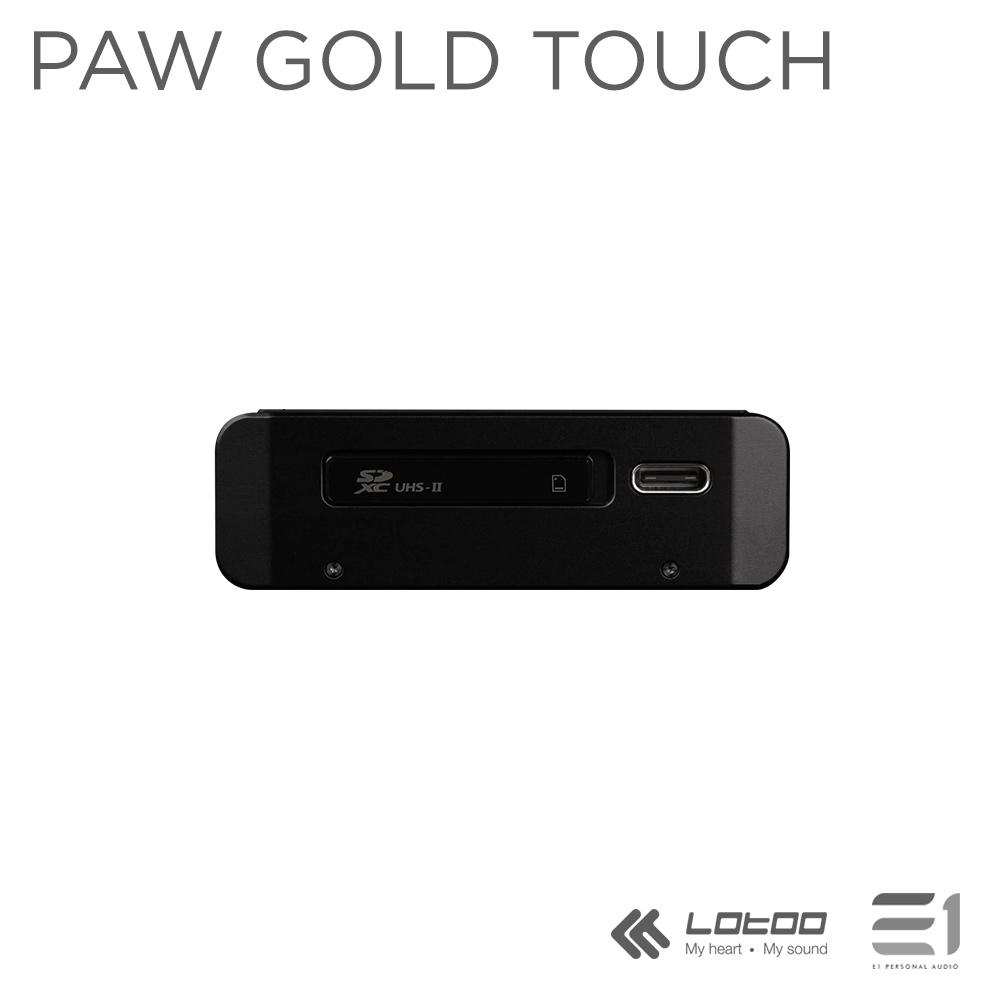

Lotoo Gold Touch Digital Audio Player

Lotoo Paw Gold Touch Reference Portable Hi-Fi Player, with the flagship DAC chip AKM4497 and audio-oriented system architecture, PAW Gold Touch is giving more natural sound for its reference level design concept.

Product Highlights:

• 3.77" IPS Touch Screen
• Lotoo OS (NOT Android)
• Bluetooth 4.1 with LDAC
• 4.4mm Balanced Output
• Power Output: 500mW at 32Ohm load
• USB DAC (Fully Asynchronous)
• USB-C Port, USB 3.1 Protocol
• Memory: SD Card upto 2TB, Supports UHS II
• 10+ Hrs Battery Life

Specifications:

Body:

• Dimensions: 119mm x 68.6mm x 21mm
• Weight: 275g

• Touchscreen
• Size: 3.77" IPS Display
• Resolution: 800 x 480
• Gorilla Glass (Std 5)
• DLC Coating for Added Strength
• AF (Anti-Fingerprint) Coating

• Playback Time: 10+ Hrs
• Capacity: 5500 mAH

• USB-C with upto USB 3.1 protocol
• USB DAC Functionality
• USB Charging

• Bluetooth 4.1 with LDAC support
• WiFi b/g/n

• SD Card
• Support Upto 2TB UHS II

• Lotoo OS (Not Android or Linux)
• PMEQ II with 5 Filters Per Setting
• ATE

• DAC Chip: AKM 4497EQ
• Support upto PCM 768kHz and DSD512
• Headphone Out - 4.4mm Balanced & 3.5mm Single Ended
• Line Out - 4.4mm
• Output Power: 500 mW per Channel at 32 Ohms

• Frequency Response: 20 - 20,000 kHz (+0.008/-0.34 dB)
• THD+N: 0.00015%
• SNR: 127 dB
• Channel Separation: -126 dB
• Dynamic Range: 127 dB
• High Gain: +14.4 dBu
• Low Gain: -10 dBu

• Frequency Response: 20 - 20,000 kHz (+0.008/-0.34 dB)
• THD+N: 0.00015%
• SNR: 127 dB
• Channel Separation: -126 dB
• Dynamic Range: 127 dB
• Gain: +14.4 dBu

• Frequency Response: 20 - 20,000 kHz (+0.006/-0.38 dB)
• THD+N: 0.00045%
• SNR: 123 dB
• Channel Separation: Unknown
• Dynamic Range: 123 dB
• High Gain: +16 dBu
• Low Gain: -9 dBu
