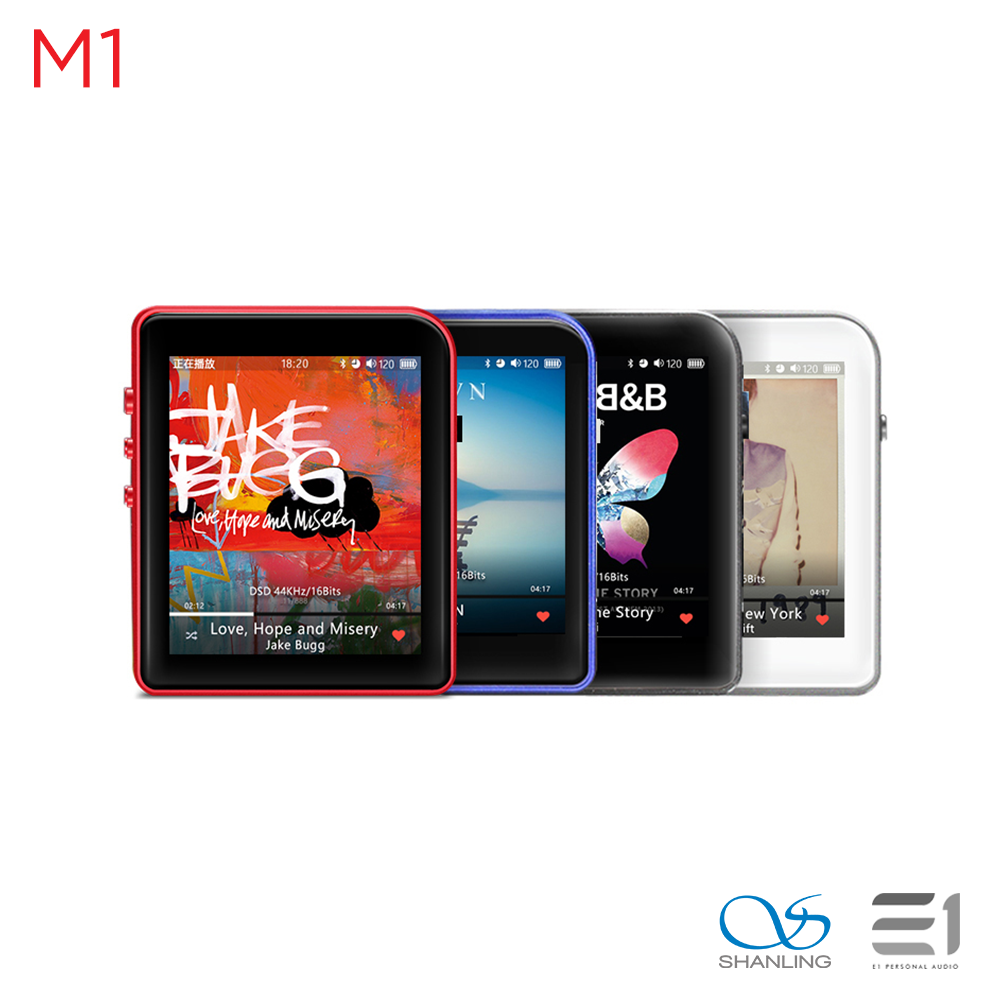

Shanling M1

RM659.00 MYR
| /

Shanling M1 Portable Lossless Digital Audio Player & DAC.

A Portable Powerhouse

Made for taking on the road, Shanling M1 packs all that is needed for portable audiophile listening into a compact digital audio player. Compelling features of the M1 include aptX Bluetooth, lossless file playback and headphone amplifier and DAC functionality. Shanling M1 is a highly advanced digital audio player that packing a lot into a small space, opening up a fresh world of portable listening.

High-Resolution Support

Acting as a high-resolution audio player, Shanling M1 is able to support lossless audio including PCM, DSD Direct Stream Digital DSD64 and DSD128 playback. It also acts as an external USB or wireless DAC for computers and smartphones and a high-quality headphone amplifier supporting most headphones.

Wireless Connectivity

Wireless transmission is achieved through Bluetooth 4.0 with aptX with two-way transmission for connecting to Bluetooth headphones and Bluetooth speakers. With dual USB transmission the Shanling M1 can be connected to USB decoders for digital turntable use with Windows and Apple systems, as well as Android phones with OTG function.

Product Information:

  • Size: 60mm * 50mm * 13mm.
  • Net weight: about 60g.
  • Screen: 2.35-inch TFT high-definition display (360 * 400)
  • DSD playback: support DSD64, DSD128.
  • Decoding: support to 192kHZ-24bit.
  • Bluetooth: 4.0 supports APT-X.
  • D / A conversion chip: AK4452.
  • Amp chip: MAX97220.
  • Gain selection: low gain, high gain.
  • Audio formats: APE, FLAC, ALAC, WMA, AAC, OGG, MP3, WAV, AIFF, DSF, DIFF
  • Sampling rate: 44.1kHz-192kHz.
  • Output: Headphone output (3.5 mm)
  • Output power: 35mW @ 32ohm.
  • Frequency response: 20Hz-20kHz (-0.5dB)
  • Distortion: 0.006% (A-weighting, output 500mV)
  • Signal to noise ratio:> 105dB (A-weighting)
  • Dynamic range:> 105dB.
  • Output impedance: 0.1 ohm.
  • Channel separation:> 70dB (32ohms, 1kHz)
  • Time jitter: 30ps (Typ)
  • Reference clock jitter: 200 seconds. External storage: support to 256G TF card. USB interface:
  • Type-c (USB2.0) Capacity: 950mAH lithium battery. Life time: about 9-10 hours (charging time
  • 3-4 hours) Support system: Windows XP, Windows 7, 8, 10 (32 / 64bit), MACOSX10.1 or update

Attached Accessories

  • User`s manual:1
  • USB to Type-C cable:1
  • Warrant card:1
  • Micro USB (OTG) to Type-C cable :1
