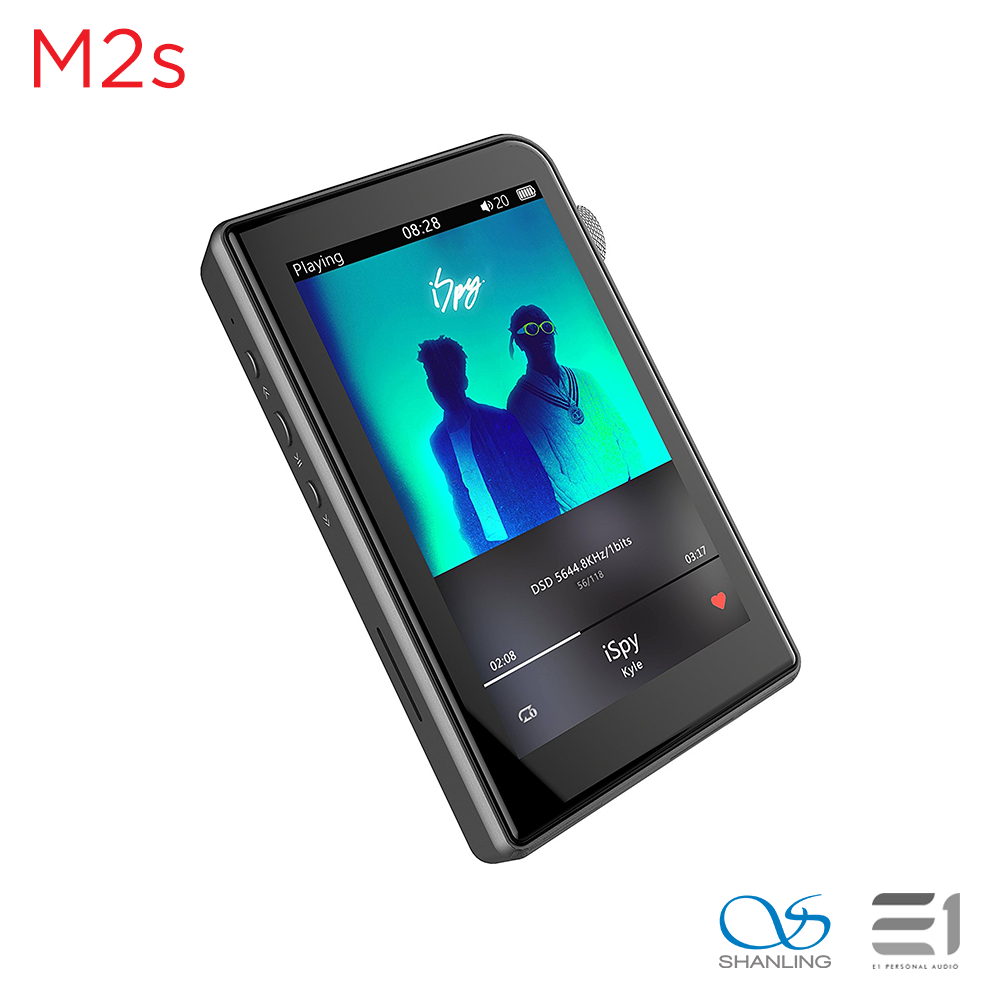

Shanling M2s Portable Lossless Digital Audio Player & DAC.
A Portable Powerhouse
Building on the highly acclaimed M2 audio player Shanling have created a stunning new portable audio player, the M2s. Packing cutting-edge technologies into a lightweight player with small dimensions the M2s is able to play most lossless audio files including DSD256 and PCM up to 384kHz/32bit. With dual-way Bluetooth the M2s can provide an audio source to connect headphones and speakers wirelessly.
DSD Support
Making sure that the M2s digital audio player creates high fidelity audio, Shanling have embedded a high-quality 32bit DAC chip that is able to receive up to 768kHz PCM signal and 11.2MHz DSD with impressively low distortion. For the amplifier section of the M2s Shanling have added a TPA6120 chip with optimised circuit design resulting in powerful thrust with a balanced sound image.
The Perfect Package
With a 20% smaller size and 100g lighter weight compared to the predecessor, the M2s provides more portability than ever while still retaining a formidable punch and high-definition fidelity. M2s has also received a new user interface with 4 different themes and 77 smart solutions to sort music, making navigating the player simple and easy.
Product Information:
- Size:53*14.5*85.6mm
- Weight:100g
- Screen:3-inch Retina high-definition display(480*800)
- Audio formats:ISO、DSF、DFF、APE、FLAC、WMA、AAC、OGG、MP3、WAV、AIFF
- Gain selection:low gain, high gain.
- D/A conversion chip:AK3390EQ
- Amp chip:TPA6120
- Low pass filter chip:MUSES8920
- Support the specification:The highest supportDSD256,PCMThe highest support32bit/384KHz
- Output power:130mW@32Ω、12mW@300Ω
- Frequency response:20Hz-20kHz (-0.2dB)
- Signal to noise ratio:≥ 108dB (A-weighting)
- Distortion: <0.003% (A-weighting, output 500mV)
- Dynamic range:≥108dB.
- Output impedance: 4.8Ω
- Channel separation: 70dB 32Ω
- Rated output level:2.2VRMS@10KΩ
- Life time: >9 hours
- Capacity: 1800mAH lithium battery
- External storage:support to 256G TF card.
- USB interface: Type-c (USB2.0)
- USB Digital input:Native/Dop/D2P Output
- Decoding:The highest support 384KHz.32Bit/support windows、Mac OS
- Bluetooth: 4.0 supports APT-X
Package
- Manuals
- Warranty CARDS
- USB cable
- Card reader
- Protective film*4
